Specificaties
Bekijk de belangrijkste eigenschappen en technische details van dit product.
Geheugen
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 2 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC | Ja |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Maximum intern geheugen | 64 GB |
| Niet gebufferd geheugen | Ja |
Processor
| Processorfabrikant | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatibele processors | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Max. aantal SMP-processoren | 1 |
Interne aansluitingen
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| Aantal SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |

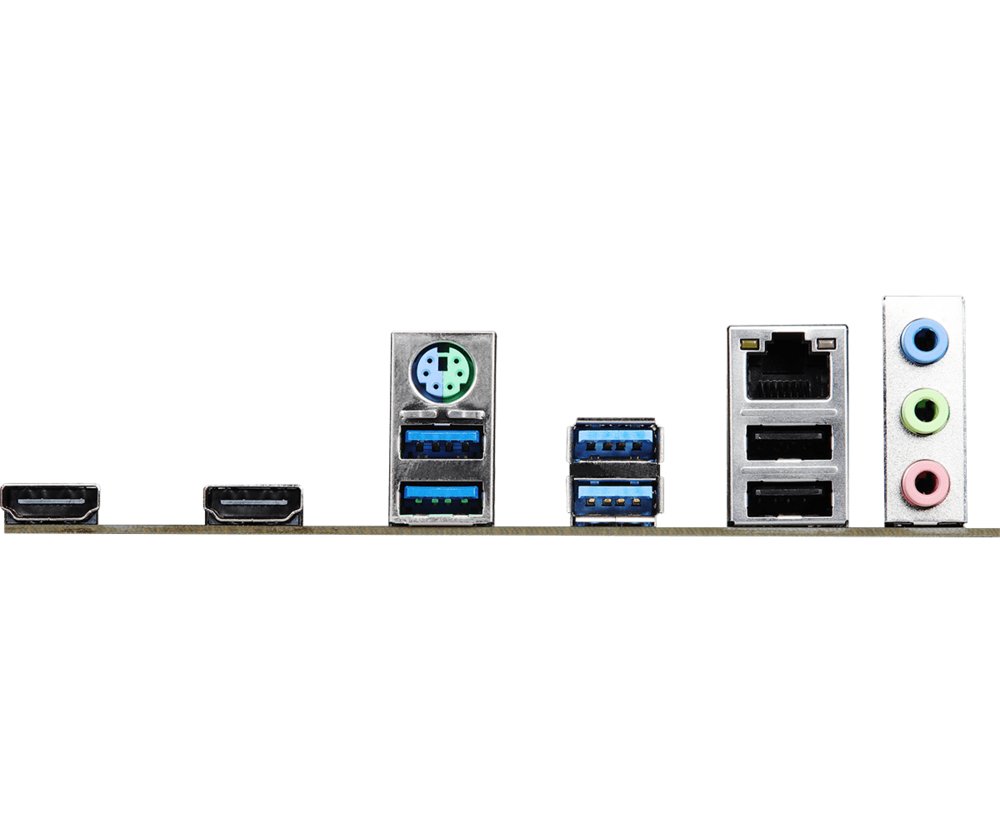

Aansluitingen achterzijde
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 4 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PS/2 poort(en) | 1 |
| Aantal HDMI-poorten | 2 |
| Lijningang | Ja |
| Microfoon, line-in ingang | Ja |
Netwerk
| Ethernet LAN | Ja |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Nee |
Grafisch
| Ondersteuning voor parallel processing | Niet ondersteund |
Uitbreidingsmodules
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| Aantal M.2 (M) slots | 1 |
BIOS
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 128 Mbit |
Opslag-controllers
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
Kenmerken
| Component voor | PC |
| Moederbord form factor | micro ATX |
| Moederbord chipset familie | Intel |
| Chipset moederbord | Intel H470 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
Gewicht en omvang
| Breedte | 231 mm |
| Diepte | 187 mm |
Inhoud van de verpakking
| Meegeleverde kabels | SATA |
| Inclusief schroeven | Ja |
