Specificaties
Bekijk de belangrijkste eigenschappen en technische details van dit product.
Geheugen
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| Non-ECC | Ja |
| Maximum intern geheugen | 128 GB |
| Niet gebufferd geheugen | Ja |
Processor
| Processorfabrikant | Intel |
| Processor socket | LGA 1700 |
| Compatibele processors | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Max. aantal SMP-processoren | 1 |
Interne aansluitingen
| USB 2.0 aansluitingen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| Thunderbolt-headers | 1 |
| RGB LED-aansluitrail | Ja |

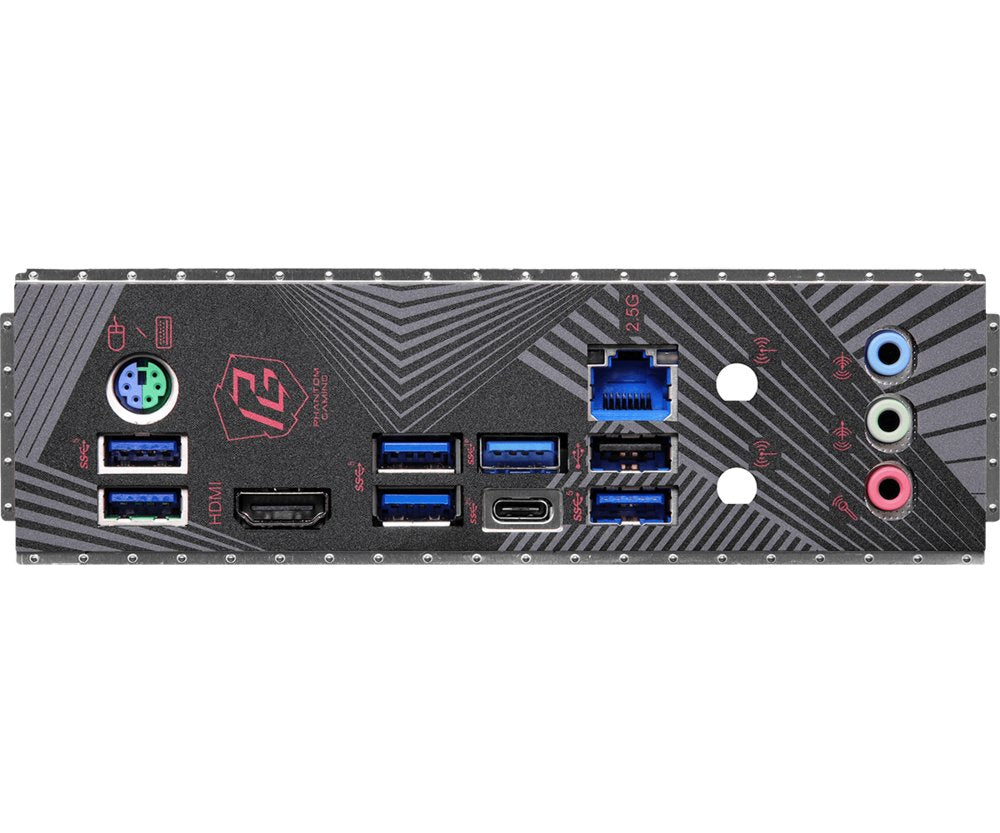

Aansluitingen achterzijde
| Aantal USB 2.0-poorten | 1 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 5 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PS/2 poort(en) | 1 |
| Aantal HDMI-poorten | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Microfoon, line-in ingang | Ja |
Netwerk
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | Nee |
Uitbreidingsmodules
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 4.x) sleuven | 1 |
| PCI Express x16 (Gen 5.x) sleuven | 1 |
| Aantal M.2 (M) slots | 1 |
BIOS
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 128 Mbit |
Opslag-controllers
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 10 |
Kenmerken
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Chipset moederbord | Intel Z790 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
Gewicht en omvang
| Breedte | 305 mm |
| Diepte | 244 mm |
