Specificaties
Bekijk de belangrijkste eigenschappen en technische details van dit product.
Geheugen
| Ondersteunde geheugen types | DDR5-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| Non-ECC | Ja |
| Supported memory clock speeds | 4800,5200,5600,6000,6200,6400 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 6400 MHz |
| Maximum intern geheugen | 128 GB |
| Niet gebufferd geheugen | Ja |
Processor
| Processorfabrikant | AMD |
| Processor socket | Socket AM5 |
| Compatibele processors | AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Supported processor sockets | Socket AM5 |
Interne aansluitingen
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| EPS power connector (8-pin) | Ja |
| TPM connector | Ja |
| Serial port headers | 1 |
| 12V vermogen-connector | Ja |
| RGB LED-aansluitrail | Ja |

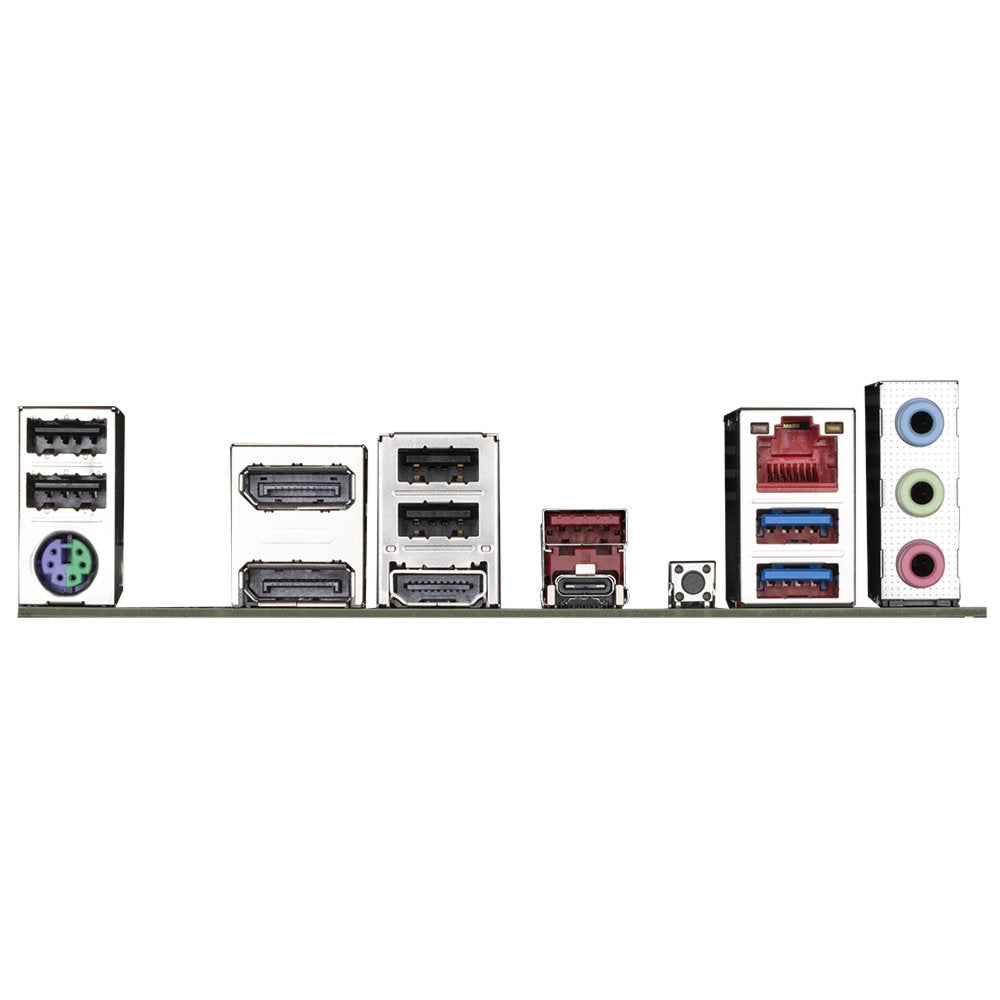

Aansluitingen achterzijde
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PS/2 poort(en) | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.1 |
| Aantal DisplayPorts | 2 |
| DisplayPort versie | 1.4 |
| Hoofdtelefoonuitgangen | 3 |
| Microfoon, line-in ingang | Ja |
| USB-connectortype | USB Type-A, USB Type-C |
Netwerk
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Nee |
Grafisch
| Ondersteuning voor parallel processing | Niet ondersteund |
| Maximum resolutie | 4096 x 2160 Pixels |
| HDCP | Ja |
| Aantal displays ondersteund | 3 |
Uitbreidingsmodules
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Aantal M.2 (M) slots | 2 |
BIOS
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Ja |
| Versie Desktop Management Interface (DMI) | 2.7 |
| Systeem Management BIOS (SMBIOS) versie | 2.7 |
Opslag-controllers
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, PCI Express 4.0, SATA III |
| Aantal storage drives ondersteund | 6 |
| RAID support | Ja |
| Soorten RAID | 0, 1, 10 |
Kenmerken
| Component voor | PC |
| Moederbord form factor | micro ATX |
| Moederbord chipset familie | AMD |
| Chipset moederbord | AMD B650 |
| Audio-uitgangskanalen | 7.1 kanalen |
| PC gezondheids monitor | Ventilator, Temperatuur, Spanning |
| Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
Gewicht en omvang
| Breedte | 244 mm |
| Diepte | 244 mm |
Inhoud van de verpakking
| Meegeleverde kabels | SATA |
