Specificaties
Bekijk de belangrijkste eigenschappen en technische details van dit product.
Geheugen
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| ECC | Ja |
| Non-ECC | Ja |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 7600 MHz |
| Maximum intern geheugen | 128 GB |
| Niet gebufferd geheugen | Ja |
Processor
| Processorfabrikant | Intel |
| Processor socket | LGA 1700 |
| Compatibele processors | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
Interne aansluitingen
| USB 2.0 aansluitingen | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 1 |
| USB 3.2-connectoren (3.1 Gen 2) | 1 |
| Aantal SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| EPS power connector (8-pin) | Ja |
| TPM connector | Ja |
| Thunderbolt-headers | 2 |
| 12V vermogen-connector | Ja |
| RGB LED-aansluitrail | Ja |

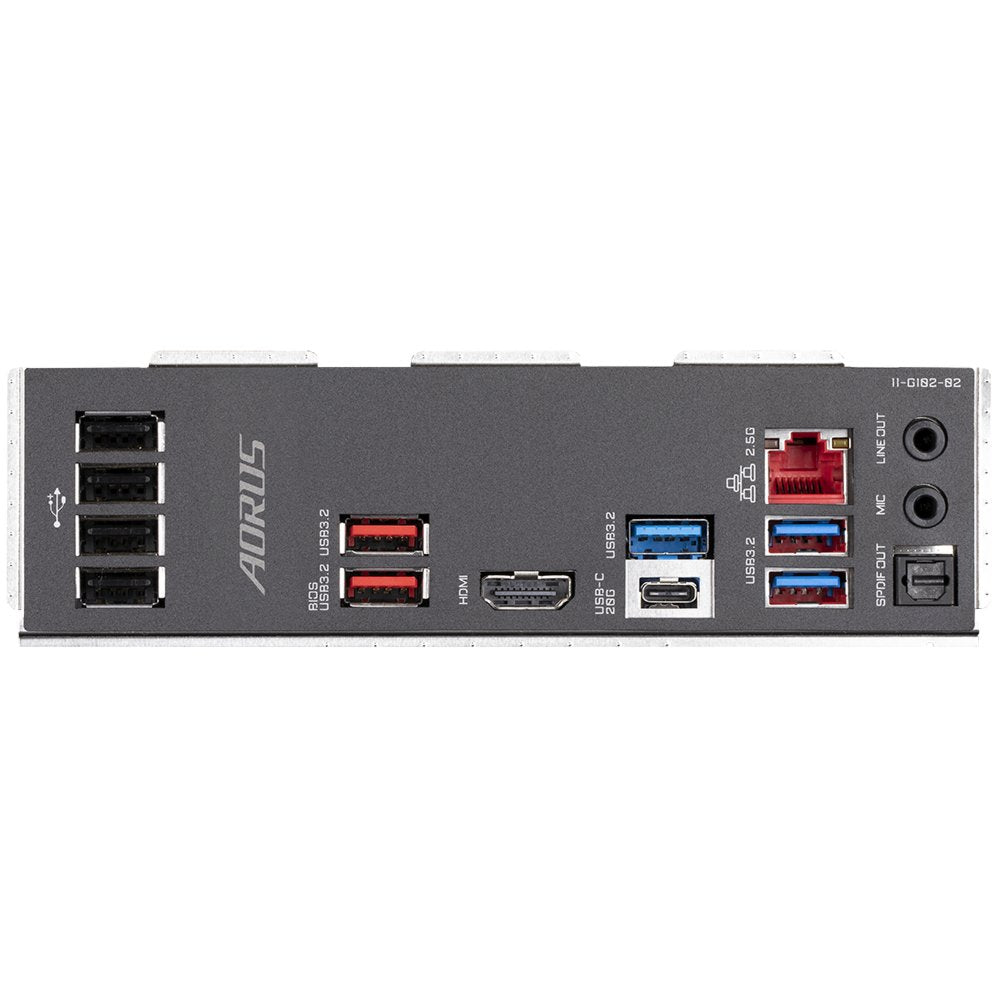

Aansluitingen achterzijde
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal USB 3.2 Gen 2.2 Type-C-poorten | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.0 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.2 |
| Hoofdtelefoonuitgangen | 2 |
| Microfoon, line-in ingang | Ja |
| S/PDIF-uitgang | Ja |
| WiFi-AP antenna jack | 2 |
| USB-connectortype | USB Type-A, USB Type-C |
Netwerk
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Nee |
Grafisch
| Ondersteuning voor parallel processing | Crossfire |
| Maximum resolutie | 4096 x 2304 Pixels |
| HDCP | Ja |
Uitbreidingsmodules
| PCI Express x16 slots | 3 |
| Aantal M.2 (M) slots | 4 |
BIOS
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Ja |
| Clear CMOS knop | Ja |
| Versie Desktop Management Interface (DMI) | 2.7 |
| Systeem Management BIOS (SMBIOS) versie | 2.7 |
Opslag-controllers
| Ondersteunde types opslag-drives | HDD & SSD |
| Ondersteunde opslagstationinterfaces | M.2, PCI Express 4.0, SATA III |
| Aantal storage drives ondersteund | 10 |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 10 |
Kenmerken
| Component voor | PC |
| Moederbord form factor | ATX |
| Moederbord chipset familie | Intel |
| Chipset moederbord | Intel Z790 |
| Audio-uitgangskanalen | 7.1 kanalen |
| PC gezondheids monitor | Ventilator, Temperatuur, Spanning, Water cooling |
| Ondersteunt Windows | Windows 10 x64, Windows 11 x64 |
Gewicht en omvang
| Breedte | 305 mm |
| Diepte | 244 mm |
Inhoud van de verpakking
| Meegeleverde kabels | SATA |
| Meegeleverde software | Norton Internet Security |
