Specificaties
Bekijk de belangrijkste eigenschappen en technische details van dit product.
Geheugen
| Ondersteunde geheugen types | DDR4-SDRAM |
| Aantal geheugenslots | 4 |
| Geheugen slots type | DIMM |
| Geheugen kanaal | Dubbelkanaals |
| Non-ECC | Ja |
| Supported memory clock speeds | 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz |
| Ondersteunde geheugenkloksnelheid (max) | 4800 MHz |
| Maximum intern geheugen | 128 GB |
Processor
| Processorfabrikant | Intel |
| Processor socket | LGA 1700 |
| Compatibele processors | Intel® Celeron®, Intel® Pentium® Gold |
| Max. aantal SMP-processoren | 1 |
| Supported processor sockets | LGA 1700 |
Interne aansluitingen
| USB 2.0 aansluitingen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen | 2 |
| Aantal SATA III connectors | 4 |
| Aansluiting voor audiopaneel aan voorzijde | Ja |
| Voorpaneel-connector | Ja |
| ATX Power connector (24-pin) | Ja |
| Aansluiting voor CPU koeler | Ja |
| TPM connector | Ja |
| RGB LED-aansluitrail | Ja |

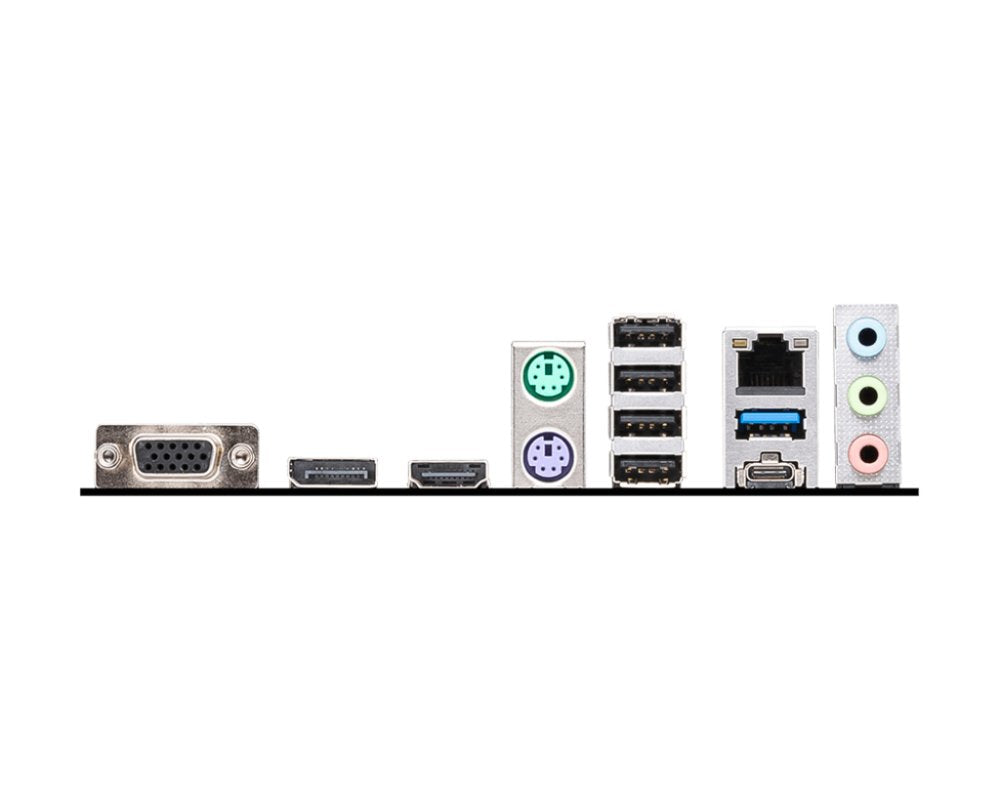

Aansluitingen achterzijde
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 1.4 |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
Netwerk
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Nee |
Uitbreidingsmodules
| PCI Express x1 (Gen 3.x) slots | 2 |
BIOS
| BIOS type | UEFI AMI |
| Grootte BIOS-geheugen | 256 Mbit |
| Systeem Management BIOS (SMBIOS) versie | 3.5 |
Opslag-controllers
| Ondersteunde opslagstationinterfaces | M.2, SATA III |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 10 |
Kenmerken
| Component voor | PC |
| Moederbord form factor | micro ATX |
| Moederbord chipset familie | Intel |
| Chipset moederbord | Intel B760 |
| Audiochip | Realtek ALC897 |
| Audio-uitgangskanalen | 7.1 kanalen |
| Type stroombron | ATX |
| Ondersteunt Windows | Windows 10, Windows 11 |
Gewicht en omvang
| Breedte | 243,8 mm |
| Diepte | 243,8 mm |
