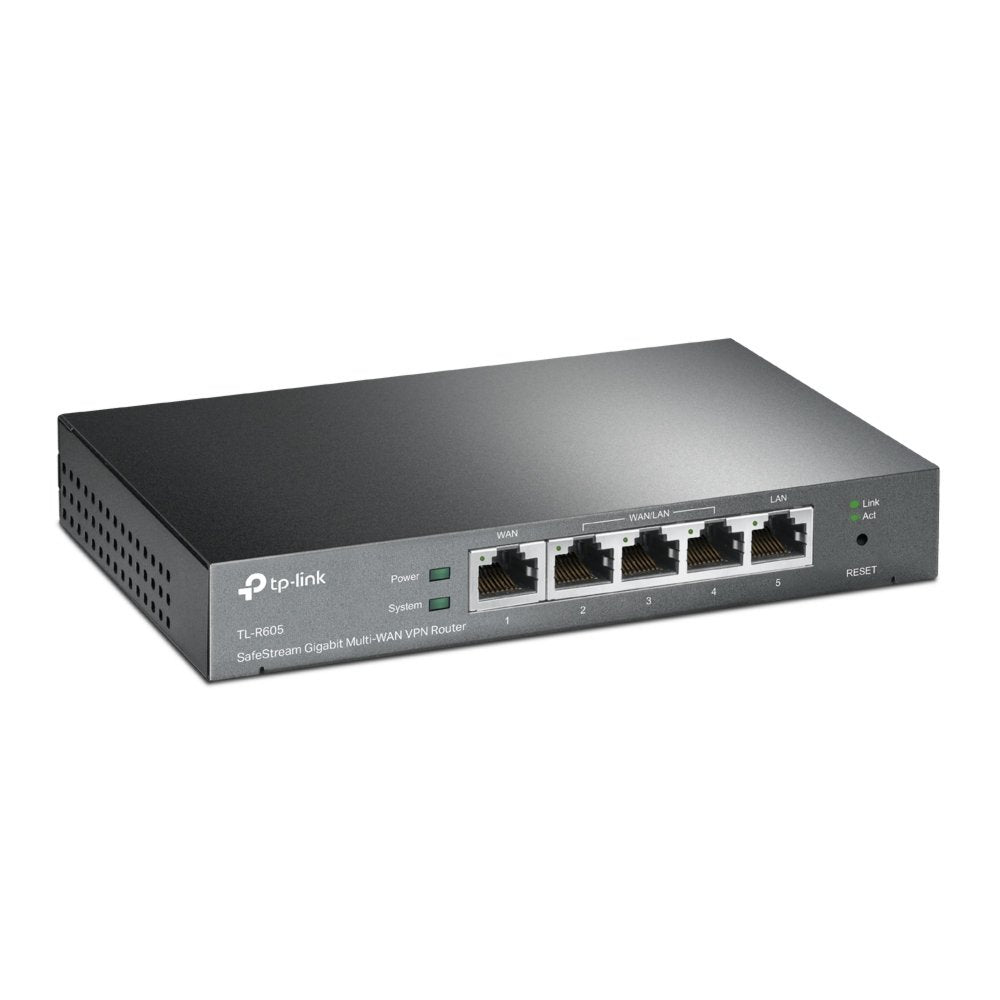

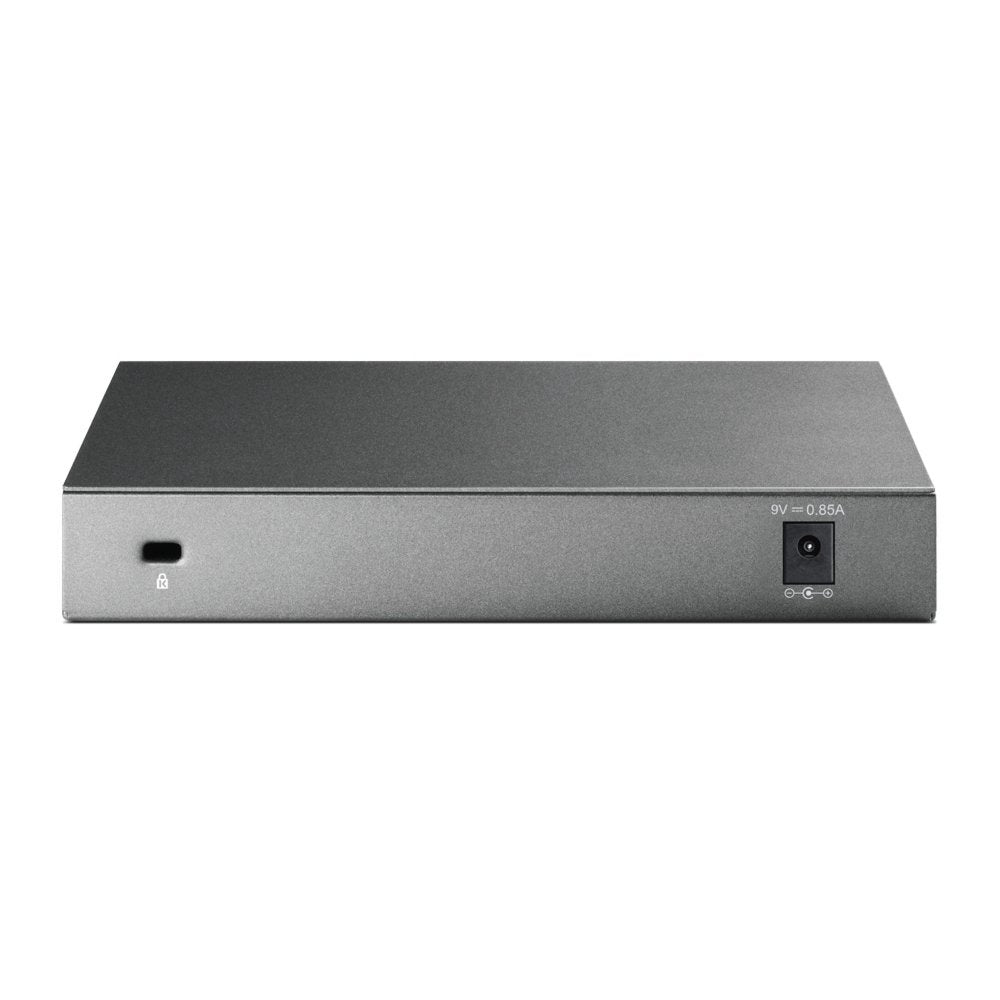

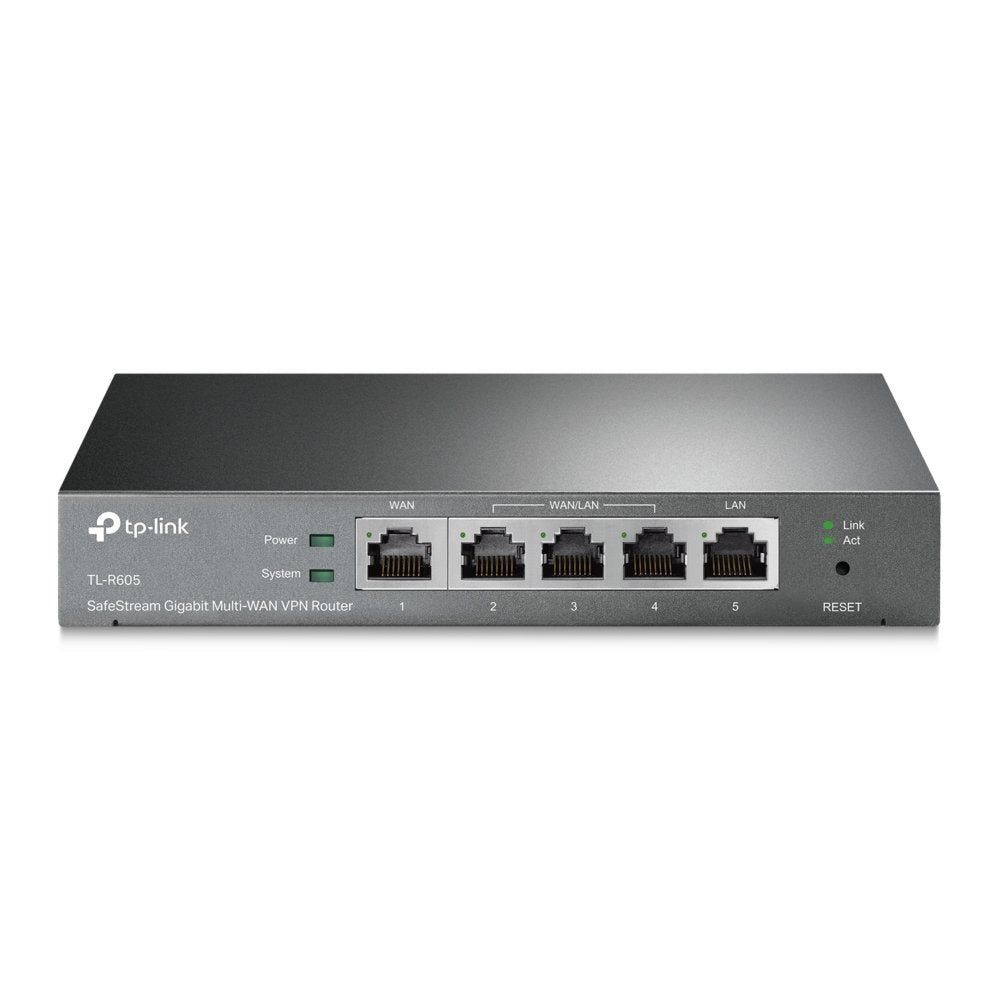

TP-Link TL-R605 | SafeStream Gigabit Multi-WAN Bedrade VPN-RouterTP-Link TL‑R605 | SafeStream Gigabit Multi‑WAN VPN Router | Omada SDN | Geen WiFi

FUNCTIONALITEIT VAN DE HARDWARE

Standaarden en protocollen • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface • 1 Fixed Gigabit WAN Port

• 1 Fixed Gigabit LAN Port

• 3 Changeable Gigabit WAN/LAN Ports

Netwerkmedia • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Knop Reset Button

Uitgangsvermogen External 9V/0.85A DC Adapter

Flash SPI 16MB

Dram 128 MB

LED PWR, SYS, WAN, LAN

Afmetingen ( B x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)

PRESTATIE

Concurrent Session 25,000

IPsec VPN Throughput 41.5 Mbps

BASISFUNCTIES

WAN verbindingstype • Static/Dynamic IP

• PPPoE

• PPTP

• L2TP

MAC Kloon Modify WAN/LAN MAC Address†

DHCP • DHCP Server/Client

• DHCP Address Reservation

• Multi-net DHCP*

• Multi-IP Interfaces*

IPv6 Yes

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

ACL IP/Port/Protocol/Domain Name Filtering

Advanced Routing • Static Routing

• Policy Routing

Bandbreedte Controle • IP/Port-based Bandwidth Control

• Guarantee & Limited Bandwidth

Load balancing • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing§, Failover)

• Online Detection

NAT • One-to-One NAT§

• Multi-Net NAT

• Virtual Server

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Beveiliging • SPI Firewall

• VPN Passthrough

• FTP/H.323/PPTP/SIP/IPsec ALG

• DoS Defence, Ping of Death

• Local Management

Session Limit IP-based Session Limit

VPN

IPsec VPN • 20 IPsec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IKEv1/v2*

• MD5, SHA1 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

*These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller

PPTP VPN • PPTP VPN Server

• 10 PPTP VPN Clients**

• 16 Tunnels

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• 10 L2TP VPN Clients**

• 16 Tunnels

• L2TP over IPSec

OpenVPN • OpenVPN Server*

• 10 OpenVPN Clients*△

• 16 OpenVPN Tunnels*

BEVEILIGING

Filtering WEB Group Filtering§

URL Filtering

Web Security§

ARP inspectie • Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§

Bescherming tegen aanvallen • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

Access Control Source/Destination IP Based Access Control
